Lima Locomotive & Machine Co.

Photo Credit:
Frank A. King collection

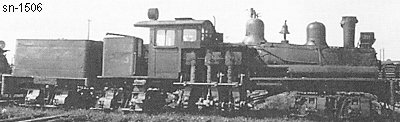

Shop Number 1506 - Built for: Minnesota Land & Construction Co.
{947th Lima Built Shay}
Built:
1-24-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.65
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
108,400
Owners:
Virginia & Rainy Lake Co.Duluth, Rainy Lake & Winnipeg RY #23, Clear Lake, MN
(12-19-1908) Virginia & Rainy Lake Co., Clear Lake, MN
(1912) Virginia & Rainy Lake Co. #23, Cusson, MN
(10-9-1929) Company closed down
(3-3-1931) For sale
Disposition: Scrapped
Additional Notes:
