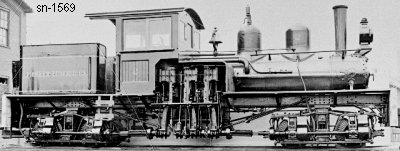

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 9-1905)
Shop Number 1569 - Built for: Pioneer Lbr. Co.
{1,010th Lima Built Shay}
Built:
9-15-1905
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3-8x8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

St. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

4.86
Maximum
Safe Speed:

10.3
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
43,400
Owners:
Pioneer Lbr. Co. #2, Motzorongo, Vera Cruz, Mexico
Ingenio Monzorongo, The Monzorongo Co. #2, Cordoba, Vera Cruz, Mexico
Disposition: Scrapped
Additional Notes: new boiler 7-31-1924
