Lima Locomotive & Machine Co.

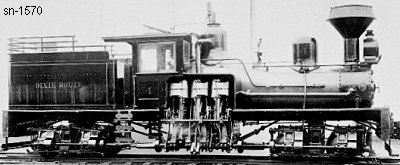

Photo Credit:
George R. Kadelak collection (BP 10-1905)
Shop Number 1570 - Built for: Jackson Lbr. Co.
{1,011th Lima Built Shay}
Built:
10-21-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3-10x12
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.09
Maximum
Safe Speed:

15.9
Fuel Type:
wood
Fuel Capacity:
1.5 cord
Water Capacity:
2,200 Gallons
Empty Weight:
As built
65,300
Owners:
Jackson Lbr. Co., Dixie Route #4, Lockhart, AL
Disposition: (6-1921) Dismantled and junked at Lockhart, AL
Additional Notes:
