Lima Locomotive & Machine Co.

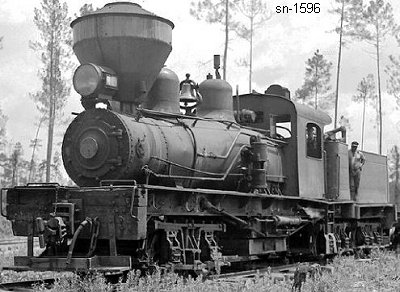

Photo Credit:
David Thomas collection
Shop Number 1596 - Built for: Kingston Lbr. Co.
{1,037th Lima Built Shay}
Built:
11-11-1905
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
5.09
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
100,000
Owners:
Kingston Lbr. Co. #200, Laurel, MS
(6-1907) Gilchrist-Fordney Co. #200, Laurel, MS
Disposition: Scrapped at Laurel, MS
Additional Notes:
