Lima Locomotive & Machine Co.

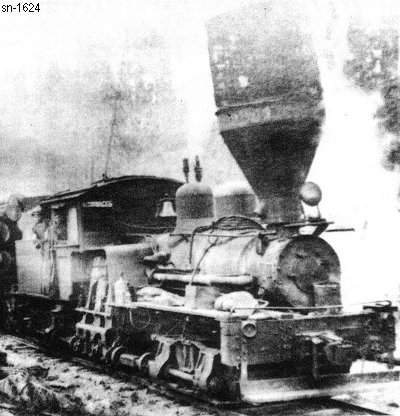

Photo Credit:
by Adolf Hungry Wolf from John Pousen collection
Shop Number 1624 - Built for: Otis Staples Lbr. Co.
{1,064th Lima Built Shay}
Built:
3-1-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.259
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,832 Lbs.
Factor of
Adhesion:

3.94
Maximum
Safe Speed:

13.9
Fuel Type:
Wood
Fuel Capacity:
1.75 Cord
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,300
Owners:
Otis Staples Lbr. Co., St. Mary's & Cherry Creek RY #2, Wycliffe, BC, CAN
(10-13-1927) For sale
Disposition: (1936 or later) Scrapped at Wycliffe
Additional Notes:
