Lima Locomotive & Machine Co.

Photo Credit:
by Tom G. King

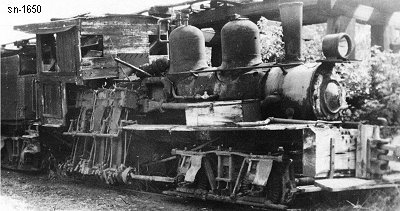

Shop Number 1650 - Built for: Yale Lbr. Co.
{1,090th Lima Built Shay}
Built:
1-23-1906
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

ST. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

4.90
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
42,700
Owners:
Yale Lumber Co., Licking River RR #3 (2nd), Yale, KY
(5-22-1919) W. M. Ritter Lbr. Co., Fremont, VA
(7-14-1920) W. M. Ritter Lbr. Co. #1650, McClure, VA
(1923) W. M. Ritter Lbr. Co., Asheville, NC
[Std.] W. M. Ritter Lbr. Co., Tillman, SC
Disposition: Scrapped
Additional Notes:
