Lima Locomotive & Machine Co.

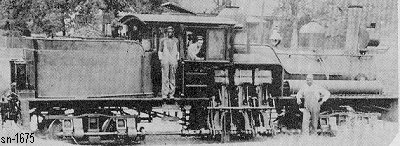

Photo Credit:
Lillian Shaw collection (c1927)
Shop Number 1675 - Built for: Stearns Coal & Lbr. Co.
{1,115th Lima Built Shay}
Built:
8-30-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

5.10
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,410 Gallons
Empty Weight:
As built
79,375
Owners:
Stearns Coal & Lbr. Co., Kentucky & Tennessee RY #4, Stearns, KY
Southern Iron & Equip. Co. (D) #721, Atlanta, GA
(3-1910) Milstead Mfg. Co., Milstead RR #2, Conyers, GA
Disposition: Scrapped
Additional Notes:
