Lima Locomotive & Machine Co.

Photo Credit:
Benjamin F. G. Kline Jr. collection

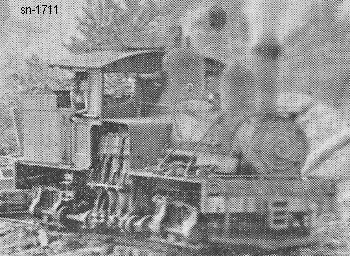

Shop Number 1711 - Built for: Glady Fork Lbr. Co.
{1,151st Lima Built Shay}
Built:
7-12-1906
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.03
 Maximum
Safe Speed:
13.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
59,700
Owners:
Glady Fork Lbr. Co. #3, Glady, WV
(2-10-1919) Caflisch Lbr. Co., Albright, WV
(2-21-1921) Emmons Coal Mining Co. #3, Bayard, WV
(3-1932) Upper Elk & Potomac Coal Corp. #3, Bayard, WV
Disposition: Scrapped
Additional Notes:
