Lima Locomotive & Machine Co.
Photo Credit:
Left: Benjaminn F. G. Kline Jr. collection
Right: Seth Williams collection

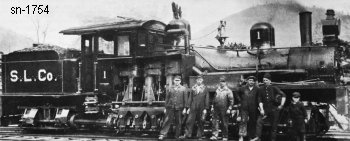

Shop Number 1754 - Built for: Ronceverte & Lewisburg RY
{1,194th Lima Built Shay}
Built:
11-16-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
23,238 Lbs.
Factor of
Adhesion:

4.40
Maximum
Safe Speed:

15.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,700
Owners:
Lewisburg and Ronceverte Electric RY #2, Ronceverte, WV
(c1909-1911) Central Pennsylvania Lbr. Co. #63, Penfield, PA
(by 1913) Central Pennsylvania Lbr. Co. #63, Costello, PA
(by 10-16-1921) Central Pennsylvania Lbr. Co. #63, Kinzua, PA
(10-10-1922) C. C. Slaught Lbr. Co. #1, Morris, PA
Disposition: (8-21-1926) Scrapped at Morris, PA
Additional Notes: (c1916) Wheels and axles of 763 transferred to 1754
(1922) Rebuilt, cab and tender replaced
