Lima Locomotive & Machine Co.

Photo Credit:

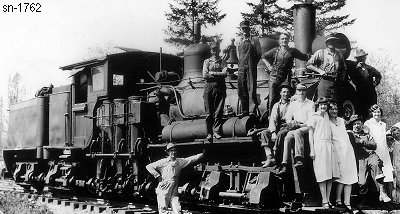

Clark Kinsey photo from Martin E. Hansen collection
Shop Number 1762 - Built for: New Mexico Lbr. Co.
{1,201st Lima Built Shay}
Built:
10-26-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.72
Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,600
Owners: (Includes new data after 2018 Shay book completed)
New Mexico Lbr. Co., Rio Grande & Pagosa Springs RR #5, Blanco, CO
(6-23-1911) For sale
(1914) New Mexico Lbr. Co., Rio Grande & Southwestern RR #5, El Vado, NM
(c1917) Wrecked, went for repair at Hofius Steel & Eqpt. Co. (D), in WA; not returned
(1-4-1918) [Std.] California Barrel Co. #5, Olney, OR
(1919) Koster Products Co. #5, Astoria, OR
Disposition: Scrapped
Additional Notes: Shipped to Pueblo, CO

Converted to oil burner
