Lima Locomotive & Machine Co.

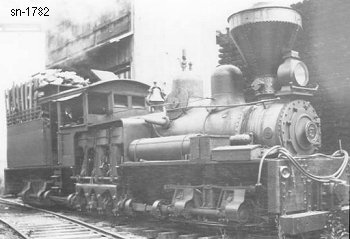

Photo Credit:
Both: Sandy Macham collection
Shop Number 1782 - Built for: Victoria Lbr. & Mfg. Co. Ltd.
{1,221st Lima Built Shay}
Built:
12-29-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.57
Maximum
Safe Speed:

17.2
Fuel Type:
Wood
Fuel Capacity:
3.25 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
84,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Victoria Lbr. & Mfg. Co., Ltd., #5, Chemainus, BC, CAN
(3-20-1926) Converted to oil burner
(5-9-1944) Victoria Lbr. Co., Ltd. #5, Chemainus, BC, CAN
Disposition: (before 1950) Scrapped
Additional Notes:
