Lima Locomotive & Machine Co.

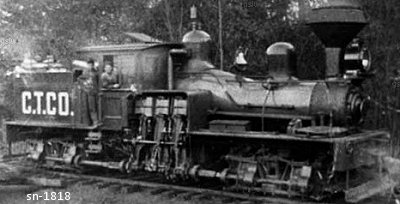

Photo Credit:
O. J. Malcolm collection
Shop Number 1818 - Built for: Chapman Tbr. Co.
{1,257th Lima Built Shay}
Built:
2-4-1907
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.42
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Chapman Tbr. Co., Portland & Southwestern RR #3, Scappoose, OR
(1913) Nehalem Tbr. & Log. Co. #3, Scappoose, OR
(c2-22-1922) Clark & Wilson Lbr. Co. #3, Nehalem Jct., OR
(c1927) Clark & Wilson Lbr. Co. #3, Scappoose, OR
(c1927) Clark & Wilson Lbr. Co. #3, Wilark, OR
Disposition: Scrapped
Additional Notes: Shipped to Chapman Lbr. Co., Portland, OR
