Lima Machine Works

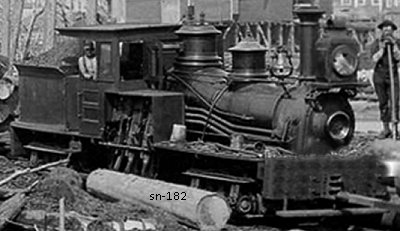

Photo Credit:
by Unknown early c1905
Shop Number 182 - Built for: G. M. Sherwood
{149th Lima Built Shay}
Built:
9-1-1887
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

WT. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,179 Lbs.
Factor of
Adhesion:

4.37
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Ton
Water Capacity:
1,030 Gallons
Empty Weight:
As built
44,200
Owners:
G. M. Sherwood, Chattanooga & Lookout Mountain RY #182, Chattanooga, TN
(by 1905) Blackwater Lbr. Co. #182, Davis, WV
(1-17-1921) Babcock Lbr. & Boom Co. #182, Davis, WV
Disposition: Scrapped
Additional Notes:
