Lima Locomotive & Machine Co.

Photo Credit:
by Enrique Gonzales

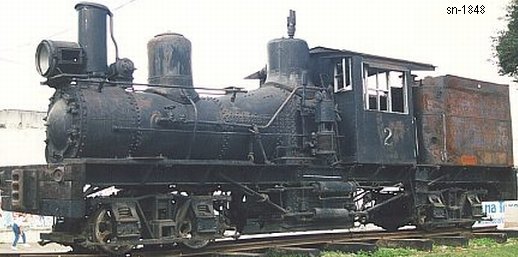

Shop Number 1848 - Built for: Teziutlan Copper Co.
{1,287th Lima Built Shay}
Built:
2-4-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Diam.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.46
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
60,800
Owners:
Tezuitlan Copper Co. #2, Teziutlan, PUE, Mexico
Disposition: displayed @ Teziutlan Copper Co. Plant, Teziutlan, PUE, Mexico
Additional Notes:
SLc Survivor List
