Lima Locomotive & Machine Co.

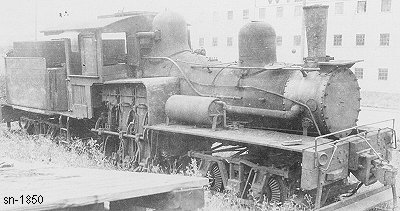

Photo Credit:
Marc Reusser collection (1937)
Shop Number 1850 - Built for: C. C. Masten Log. Co.
{1,289th Lima Built Shay}
Built:
4-9-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.84
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood / Oil
 Fuel Capacity:
1.5 Cords / 850 Gal
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,125
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
C. C. Masten Log. Co. #1, Rainier, OR
(1-1909) St. Helens Log. Co. #1, St. Helens, OR
(11-1910) St. Helens Mill Co. #1, St. Helens, OR
(11-1911) St. Helens Tbr. Co. #1, St. Helens, OR
(1915) St. Helens Lbr. Co. #1, St. Helens, OR
(2-1917) Milton Creek Log. Co. #1, Yankton, OR
(2-9-1927) For sale
A. W. Bell Lbr. Co. #1, Beaver Creek, OR
(5-1937) Willamette Iron & Steel Works (D), Portland, OR
Disposition: Scrapped
Additional Notes:
