Lima Locomotive & Machine Co.

Photo Credit:
Both: Sandy Macham collection

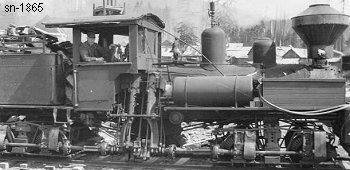

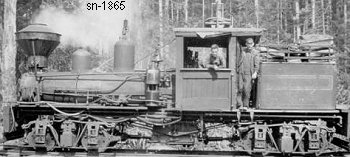

Shop Number 1865 - Built for: North Star Lbr. Co.
{1,304th Lima Built Shay}
Built:
4-24-1907
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia. Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
8,177 Lbs.
Factor of
Adhesion:

5.17
Maximum
Safe Speed:

10.3
Fuel Type:
Wood / Coal
Fuel Capacity:
.75 Cords
Water Capacity:
730 Gallons
Empty Weight:
As built
35,200
Owners:
North Star Lbr. Co. #1 "HANBURY", Jaffray, BC, CAN
(10-18-1920) Mayo Lbr. Co. #1, Paldi, BC, CAN
Disposition: (1938) Scrapped, boiler to Pacific Sanitary Rag Co., Victoria, BC, CAN
Additional Notes:
