Lima Locomotive & Machine Co.

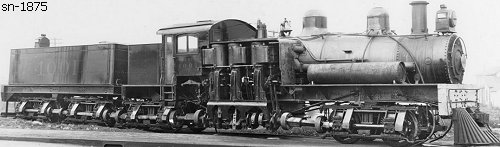

Photo Credit:
Max Robin collection (BP 11-1907)
Shop Number 1875 - Built for: Southern RY
{1,314th Lima Built Shay}
Built:
11-6-1907
Class:
D
150-4
Trucks:
4
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.05
Wheel Dia.:
46"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 62.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
52,161 Lbs.
Factor of
Adhesion:

5.61
Maximum
Safe Speed:

26.7
Fuel Type:
Coal
Fuel Capacity:
9 Tons
Water Capacity:
8,000 Gallons
Empty Weight:
As built
222,700
Owners:
Southern RY Co., Southern RY #4001, Combs, TN; (office in Knoxville)
(after 5-1911) Chesapeake & Ohio RY Co., Chesapeake & Ohio RY #15 (4th), Thurmond, WV
Chesapeake & Ohio RY Co., Chesapeake & Ohio RY #15 (4th), Huntington, WV, stored
Disposition: (12-26-1944) Scrapped
Additional Notes:
