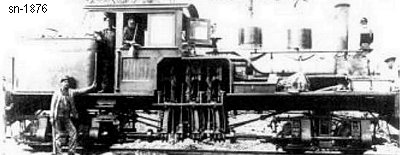

Lima Locomotive & Machine Co.

Photo Credit:
by J. H. Harris (1917)
Shop Number 1876 - Built for: Meadows Co.
{1,315th Lima Built Shay}
Built:
2-20-1907
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
42,100
Owners:
Meadows Co. #693, Altapass, NC
McArthur Brothers Co., Altapass, NC
United States Equip. Co. (D), Chicago, IL
Atlantic Construction Co., Dansville, NY
(by 1-24-1921) Hebron Fire & Pressed Brick Co. #1, Hebron, ND
Disposition: Scrapped
Additional Notes:
