Lima Locomotive & Machine Co.

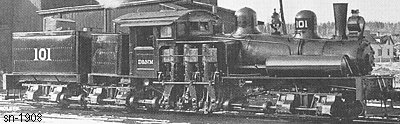

Photo Credit:
Both: Frank King collection

Shop Number 1908 - Built for: Alger-Smith Lbr. Co.
{1,347th Lima Built Shay}
Built:
6-4-1907
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.78
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
112,800
Owners:
Alger-Smith Lbr. Co., Duluth & Northern Minnesota RY #101, Knife River, MN
(by 2-12-1928) Stanley Coal Co., Preston RR #101 later #14, Crellin, MD
Disposition: Scrapped at Turner-Douglas, Preston County, WV
Additional Notes:
