Lima Locomotive & Machine Co.
Photo Credit:
Both: British Columbia Archives

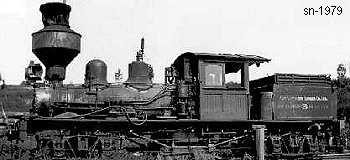

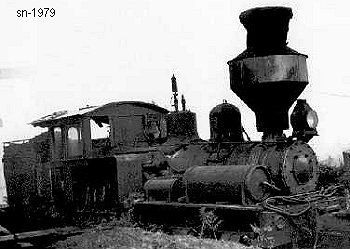

Shop Number 1979 - Built for: Hood Lbr. Co.
{1,418th Lima Built Shay}
Built:
11-10-1907
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
15,162 Lbs.
Factor of
Adhesion:

4.41
Maximum
Safe Speed:

10.9
Fuel Type:
Wood / Coal
Fuel Capacity:
1.5 Cords / 1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
55,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hood Lbr. Co. #1, Three Valley, BC, CAN
New Ladysmith Lbr. Co., Ltd. #3, Nanaimo, BC, CAN
(12-3-1926) Edwards & Bradford Lbr. Co. #3, Nanaimo, BC, CAN
(4-25-1927) Nanaimo Lbr. Co., Ltd. #3, Nanaimo, BC, CAN
(5-1939) Vancouver Machinery Depot, Ltd. (D), Vancouver, BC, CAN
(5-1939) converted to a stationary boiler
Disposition: Scrapped
Additional Notes: (1926) Edwards & Bradford Lbr. Co., in Elk, WA took over New Ladysmith Lbr. Co., Ltd. and became Nanaimo Lbr. Co., Ltd.
