Lima Locomotive & Machine Co.

Photo Credit:
Doug Graves collection

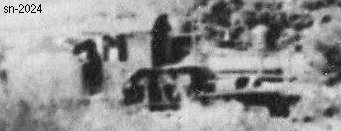

Shop Number 2024 - Built for: Bartow Lbr. Co.
{1,463rd Lima Built Shay}
Built:
9-1-1908
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
18,290 Lbs.
Factor of
Adhesion:

4.80
Maximum
Safe Speed:

13.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
60,500
Owners:
Bartow Lbr. Co. #3, Cartersville, GA
Fitzwater & Cart, High Coal, WV
(6-30-1920) Porter Lbr. Co., Cabin Creek, WV
(by 4-18-1921) West Virginia Tbr. Co. #3, Rapidan RR, Orange, VA
(7-8-1924) For sale
(by 8-1-1926) M. L. Davis, Oak Grove & Georgetown RR #3, Oak Grove, AL
9by 12-14-1927) Frost-Sibley Lbr. Co. #8, Lamison, AL
(3-8-1935) For sale and offer special price of $200.00
Disposition: (1935) Scrapped at Alberta, AL
Additional Notes:
