Lima Machine Works

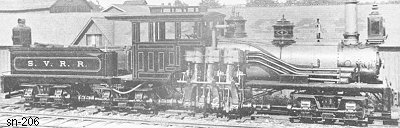

Photo Credit:
George R. Kadelak collection
Shop Number 206 - Built for: F.H. & C.W. Goodyear
{172nd Lima Built Shay}
Built:
7-2-1888
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5x12
Gear Ratio:
2.05
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
175
Tractive Effort:
27,583 Lbs.
Factor of
Adhesion:

4.90
Maximum
Safe Speed:

18.6
Fuel Type:
Coal
Fuel Capacity:
4 Tons
Water Capacity:
2,500 Gallons
Empty Weight:
As built
115,000
Owners:
F.H. & C.W. Goodyear, Sinnemahoning Valley RR #4, Austin, PA
(1910) Potato Creek RR Co., Potato Creek RR #4 (2nd), Norwich, PA
Southern Iron & Equip. Co. (D) #1863, Atlanta, GA
(7-19-1923) Bolinger-Franklin Lbr. Co. #4 (2nd), Zama, MS
(7-1-1924) W. P. Brown & Sons Lbr. Co. #4, Zama, MS
Disposition: Scrapped
Additional Notes: F.H. Goodyear was Frank Henry Goodyear
