Lima Locomotive & Machine Co.

Photo Credit:
Maple Ridge Museum, B.C. CAN collection

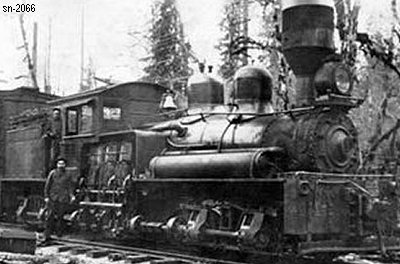

Shop Number 2066 - Built for: Merrill & Ring Lbr. Co.
{1,505th Lima Built Shay}
Built:
1-23-1908
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]

3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.20
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,860
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Merrill & Ring Lbr. Co. #1, Theodosia Arm, British Columbia, CAN
(1910) Nimpkish Tbr. Co., Ltd. #1, Nimpkish, British Columbia, CAN
(1910) Western Canada Power Co. #1, Ruskin, British Columbia, CAN
(1921) British Columbia Electric RY Co. #1, Ruskin, British Columbia, CAN
(10-19-1927) In storage at Ruskin, British Columbia, CAN
Disposition: (1944) Scrapped at Ruskin, BC
Additional Notes: Shipped to: Vancouver, British Columbia, CAN
