Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 10-1908)

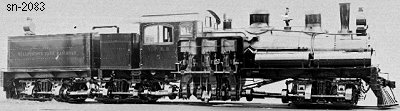

Shop Number 2083 - Built for: Yellowstone Park RR
{1,522nd Lima Built Shay}
Built:
10-31-1908
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
4.70
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,500 Gallons
Empty Weight:
As built
125,100
Owners:
Yellowstone Park RR Co., Yellowstone Park RR #5, Belfry, MT
(9-1-1909) Montana, Wyoming & Southern RR, Montana, Wyoming & Southern RR #5, Belfry, MT
(1913) Northwest Lbr. Co. #3, Kerriston, WA
(6-20-1930) Brix Log. Co. #5, Holbrook, OR
(2-9-1940) Alaska Junk Co. (D), Portland, OR
(2-9-1940) For sale
Disposition: Scrapped
Additional Notes:
