Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection

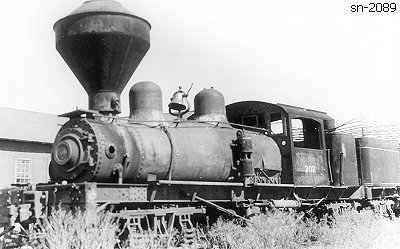

Shop Number 2089 - Built for: Mexico Milling & Transport Co.
{1,528th Lima Built Shay}
Built:
5-5-1908
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. :x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.48
Maximum
Safe Speed:

19.0
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,800
Owners:
Mexico Milling & Transport Co., Mexico North Western RY #2, Marfil, CHH, Mexico
Mexico North Western RY Co., Mexico North Western RY #302, Ciudad Juarez, CHH, Mexico
Disposition: (by 1947) Scrapped
Additional Notes: (10-31-1947) Boiler from 2089 now in stationary service
Mexico North Western RY Co. was Nor Oeste de Mexico (Spanish spelling)
