Lima Locomotive & Machine Co.

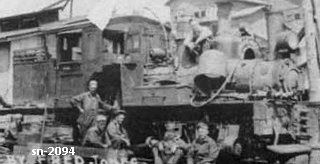

Photo Credit:
by Fred Jones (c12-1917)
Shop Number 2094 - Built for: Selma Lbr. Co.
{1,533rd Lima Built Shay}
Built:
5-29-1908
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,816 Lbs.
Factor of
Adhesion:

5.38
Maximum
Safe Speed:

10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
720 Gallons
Empty Weight:
As built
35,000
Owners:
Selma Lbr. Co. #1, Selma, NC
(7-1917) Benoy-Winston Lbr. & Tbr. Co. #60, Selma, NC
Southern Iron & Equip. Co. (D) #1207, Atlanta, GA
(12-1917) Baskett Lbr. & Mfg. Co. #3, Fayette, AL; For:
(12-1917) J. P. Daniel, #3, Fayette, AL (logging contractor)
(4-1918) W. P. Brown & Sons Lbr. Co., Mobile & Gulf RR #7, Fayette, AL
(11-13-1928) Not in service, in scrap condition
Disposition: (1930's) Scrapped
Additional Notes: New boiler 9-8-13
Converted to coal burner
