Lima Locomotive & Machine Co.

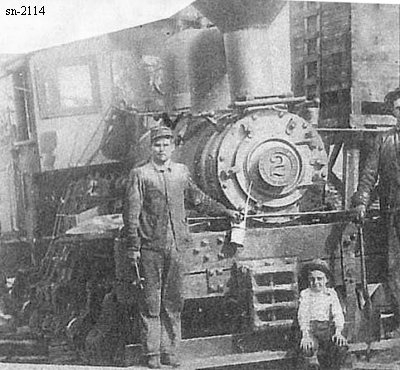

Photo Credit:
by Unknown (c1920's)
Shop Number 2114 - Built for: S. W. Beard
{1,553rd Lima Built Shay}
Built:
9-23-1908
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,886 Lbs.
 Factor of
Adhesion:
4.85
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,050 Gallons
Empty Weight:
As built
42,500
Owners:
S. W. Beard #1, Willis, TX
John Hobbs, Parrys, TX
George C. Rice Lbr.Lbr. Co., Spring, TX
Walker County Lbr. Co., Elmina, TX
(1-9-1919) [Std.] Palmetto Lbr. Co. #2, Jasper, TX
(3-22-1926) For sale
Disposition: Scrapped
Additional Notes: Shipped to: Perry's Switch, TX
