Lima Locomotive & Machine Co.

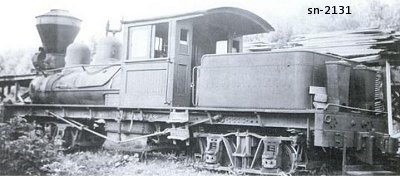

Photo Credit:
by L. L. Norton (Aug 1938)
Shop Number 2131 - Built for: W. G. McCain & Sons
{1,570th Lima Built Shay}
Built:
1-12-1909
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

5.32
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
46,500
Owners:
W. G. McCain & Sons #2, Neva, TN
(2-12-1919) Peter McCain Lbr. Co. #1, Butler, TN
(10-13-1925) For sale
(11-4-1926) D. & H. MacRae Lbr. Co., Linville, NC
Donald & Hugh MacRae (Trustees), Linville, NC
Disposition: (1944) Scrapped
