Lima Locomotive Works
Photo Credit:

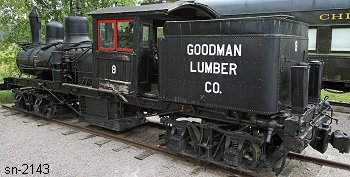

Left: by Jeff Terry (8-2011)

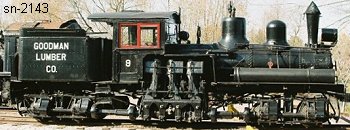

Right: by Bill Buhrmaster (2007)
Shop Number 2143 - Built for: Sawyer-Goodman Co.
{1,582nd Lima Built Shay}
Built:
3-11-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.44
 Maximum
Safe Speed:
13.2
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
65,100
Owners:
Sawyer-Goodman Co. #9, Pembine, WI
Goodman Lbr. Co. #9, Goodman, WI
Sawyer-Goodman Lbr. Co. #9, Pembine, WI
Sawyer-Goodman Lbr. Co. #9, Beecher Lake, WI
Sawyer-Goodman LuLbr.mber Co. #9, Sagola, MI
(8-1955) Hayward Lumberjack Museum, Hayward, Telemark, Bayfield & Lake Superior RY, Hayward, WI
(7-1988) Mid-Continent RY Historical Society, North Freedom, WI
Disposition: on display @ Mid-Continent RY Museum, North Freedom, WI
Additional Notes:
SLc Survivor List
