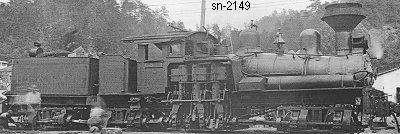

Lima Locomotive & Machine Co.

Photo Credit:
Neal A. Stone collection (11-1-1919)
Shop Number 2149 - Built for: Tellico River Lbr. Co.
{1,588th Lima Built Shay}
Built:
7-3-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.92
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
118,200
Owners:
Davis Supply Co. (D), Pittsburg, PA
Tellico River Lbr. Co., #2149, Tellico Plains, TN
Babcock Lbr. and Land Co. #2149, Alcoa (Maryville), TN
Bond-Woolf Lbr. Co. #2149, Alcoa (Maryville), TN, not used
(12-20-1927) Leased to: Kitchen Lbr. Co., Topoco, NC
Leased to: Kitchen Lbr. Co., Calderwood, TN
(6-24-1935) Little River Lbr. Co., Little River RR #2149, Townsend, TN
(11-3-1937) Conasauga River Lbr. Co. #2149, Conasauga, TN
Disposition: Scrapped
Additional Notes:
