Lima Locomotive & Machine Co.

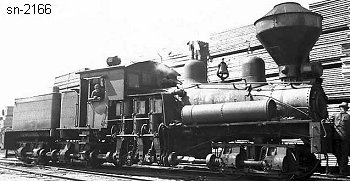

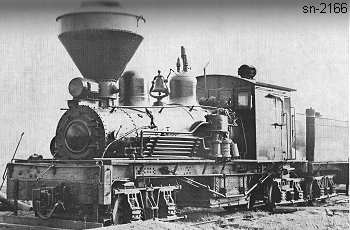

Photo Credit:
Left: by Fred Jukes
Right: Marc Reusser collection
Shop Number 2166 - Built for: St. Paul & Tacoma Lbr. Co.
{1,605th Lima Built Shay}
Built:
5-6-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.82
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
115,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
St. Paul & Tacoma Lbr. Co. #2, Ohop, WA
(c1921) St. Paul & Tacoma Lbr. Co. #2, Kapowsin, WA
(1-2-30 ) Converted to oil burner
Disposition: Scrapped
Additional Notes: Shipped to: Tacoma, WA
(11-20-1929) Stoker still working good at Kapowsin, OR
