Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

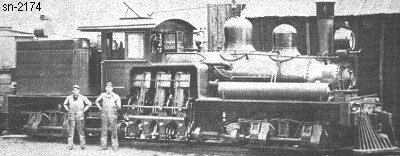

Shop Number 2174 - Built for: Sawyer-Goodman Co.
{1,613th Lima Built Shay}
Built:
6-3-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.39
Maximum
Safe Speed:
13.2
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
64,300
Owners:
Sawyer-Goodman Co. #8, Marinette, WI
(by 4-28-1919) Northern Sawmill Co. #8, Marinette, WI
(c1925) Sawyer-Goodman Lbr. Co., Sagola, MI
(c1929) Goodman Lbr. Co. #8, Goodman. WI
(1-21-1929) Converted to oil burner
(7-22-1929) Equipped to burn tar
Disposition: Scrapped
Additional Notes:
