Lima Locomotive & Machine Co.

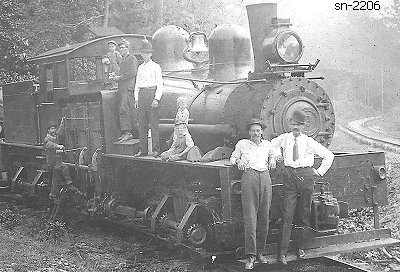

Photo Credit:
by unknown
Shop Number 2206 - Built for: Conasauga Lbr. Co.
{1,645th Lima Built Shay}
Built:
8-20-1909
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.15
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
3.8 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
97,600
Owners:
Conasauga Lbr. Co. #2, Conasauga, TN
(1912) Alaculsy Lbr. Co. #2, Conasauga, TN
(6-1917) Tennga Lbr. Co. #2, Conasauga, TN
Southern Iron & Equip. Co. (D) #1465, Atlanta, GA
(10-14-1919) E. E. Jackson Lbr. Co. #14, Riderwood, AL
Disposition: (1940) Scrapped
Additional Notes:
