Lima Machine Works

Photo Credit:
Sallie Williams collection

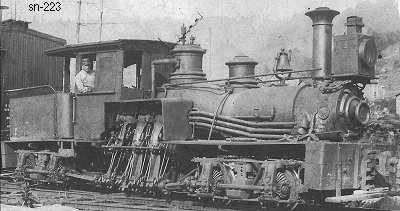

Shop Number 223 - Built for: Henry P. Weaver
{189th Lima Built Shay}
Built:
11-6-1888
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8x8
Gear Ratio:
2.176
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
7,568 Lbs.
 Factor of
Adhesion:
6.26
Maximum
Safe Speed:
14.5
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
37,100
Owners:
Henry P. Weaver, Mt. Alton, PA
(1899) Kuhns & Goodwin #223, Dunlo, PA
(4-29-1907) Blue Jay Lbr. Co. #5, Blue Jay, WV
Disposition: (12-8-1927) Scrapped
Additional Notes:
