Lima Locomotive & Machine Co.

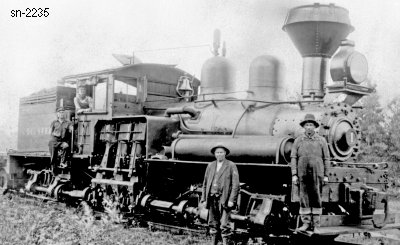

Photo Credit:
Michigan Tech Archives collection
Shop Number 2235 - Built for: Worchester Lbr. Co.
{1,674th Lima Built Shay}
Built:
10-4-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.03
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
86,000
Owners:
Worcester Lbr. Co., Houghton, Chassell & Southwestern RY #1 (2nd), Chassell, MI
(8-10-1928) For sale
(12-28-1928) Greenwood Lbr. Co. #4, Ontonagon, MI
(9-2-1931) George W. Ellis, #1, Lake Mine, MI
Disposition: Scrapped
Additional Notes:
