Lima Locomotive & Machine Co.

Photo Credit:

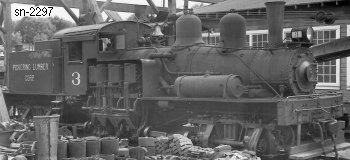

Left: Marc Reusser collection

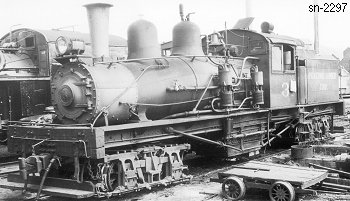

Right: by Stan Kistler
Shop Number 2297 - Built for: Standard Lbr. Co.
{1,736th Lima Built Shay}
Built:
4-30-1910
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.31
 Maximum
Safe Speed:
19.4
Fuel Type:
Oil
 Fuel Capacity:
1,200 Gal
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
104,000
Owners:
Standard Lbr. Co., Sugar Pine RY #3, Standard, CA
(1926) Pickering Lbr. Co. #3, Standard, CA
(1937) Pickering Lbr. Corporation #3, Standard, CA
(1957) On display at Standard, CA
(1977) Tuolumne County Fairgrounds, Sonora, CA
Disposition: on display @ Tuolumne Co. Fairgrounds, Sonora, CA
Additional Notes:
SLc Survivor List
