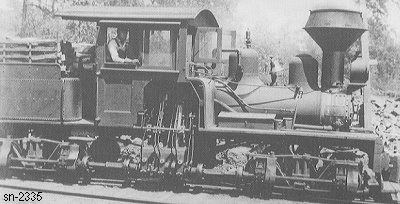

Lima Locomotive & Machine Co.

Photo Credit:
Norman Elsner collection
Shop Number 2335 - Built for: Western Pine Lbr. Co.
{1,774th Lima Built Shay}
Built:
06-06-1910
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
2 - 6 x 10
Gear Ratio:
2.467
Wheel Diam:
22"
Gauge:
std..
Boiler:
[Style - Diam.]

ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,542 Lbs.
Factor of
Adhesion:

6.09
Maximum
Safe Speed:

10.6
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
400 Gallons
Empty Weight:
As built
23,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Western Pine Lbr. Co. #1, Klickitat, WA
(1920) S. A. Foster Lbr. Co., Kings Valley, OR
(8-7-1924) Capitol Junk Co. (D), Salem, OR
Zimmerman, Wells & Brown Co. (D), Portland, OR
(12-15-1929) Western Log. & Equip. Co. (D) , Portland, OR
(1-5-1934) Western Steel & Equip. Co. (D), Portland, OR
Disposition: Scrapped
Additional Notes: Shipped to: Portland, OR
Converted to coal burner
