Lima Locomotive & Machine Co.

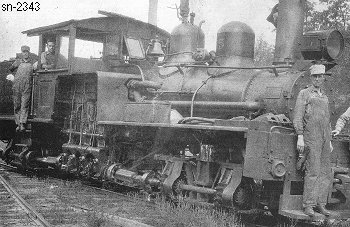

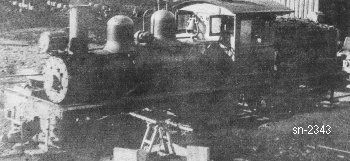

Photo Credit:
Left: by Pat DiLorenzo
Right: by Gerald Isaacs
Shop Number 2343 - Built for: Interstate Cooperage Co.
{1,782nd Lima Built Shay}
Built:
11-15-1910
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Diam:
29"
Gauge:
36"
Boiler:
[Style - Diam.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,639 Lbs.
Factor of
Adhesion:

4.42
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
51,800
Owners:
Interstate Cooperage Co., Elk & Little Kanawha RR #5, Gassaway, WV
(1-15-1919) J. J. Boxley & Son, Gassaway, WV
(1919) Babcock Coal & Coke Co., Mann's Creek RY #5 (1st), Sewell, WV
(7-31-1928) Wilderness Lbr. Co., Nallen, WV
Disposition: Scrapped
Additional Notes: Shipped to: Gassaway, WV
