Lima Locomotive & Machine Co.

Photo Credit:
Berry Cott collection

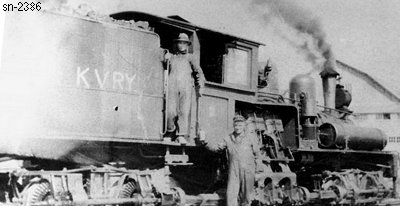

Shop Number 2386 - Built for: Laurin & Leitch Contractors
{1,825th Lima Built Shay}
Built:
10-13-1910
Class:
B
28-2
Trucks:
2
Cylinders:
[#- Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,865 Lbs.
Factor of
Adhesion:

4.58
Maximum
Safe Speed:

10.7
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
48,500
Owners:
T. H. Hopkins & Co. (D), Montreal, Que., CAN
Laurin & Leitch Contractors #2, Montreal, Que., CAN,
(1919) Schroeder Mills & Tbr. Co., Pakesley, Ont., CAN
(5-25-1928) Pakesley Lbr. Co. Ltd., Key Valley RY #2, Pakesley, Ont., CAN
(1928) burned in fire, and scrapped at Pakesley, Ont., CAN
Disposition: (1928) Scrapped after fire at Pakesley, Ont., CAN
Additional Notes:
