Lima Locomotive & Machine Co.

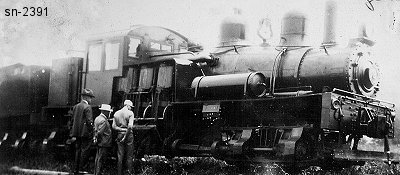

Photo Credit:
Fred Waskiewicz collection
Shop Number 2391 - Built for: Booth & Flinn
{1,830th Lima Built Shay}
Built:
6-1-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.23
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
127,050
Owners:
Pittsburgh Lbr. Co. (Booth & Flinn), Laurel Fork RY Co #2, Braemar, TN
(by 7-1-1922) Freehold Lbr. Co. #2, Flinn, VA
(9-18-1924) For sale
Disposition: Scrapped
Additional Notes: Shipped to: Elizabethton, TN
