Lima Locomotive & Machine Co.

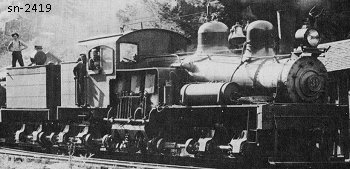

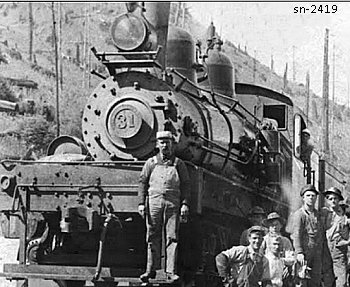

Photo Credit:
Left: James R. Garrison collection
Right: Henry L. Sorenson collection
Shop Number 2419 - Built for: Lima Locomotive Works Inc.
{1,858th Lima Built Shay}
Built:
4-6-1911
Class:
C
70-3
Trucks:
3
Cylinders:
[#- Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.04
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
125,600
Owners:
Lima Locomotive Works Inc., Lima, OH (Demonstrator at Livermore)
Norman B. Livermore Co. (D), San Francisco, CA
(c5-1912) California Western RR & Navigation Co. #10, Fort Bragg, CA
(c1914) The Pacific Lbr. Co. #31, Scotia, CA
(7-1917) Northwestern Equip. Co. (D), Portland, OR For:
(7-1917) Boise Payette Lbr. Co., Intermountain RY #3 , Cascade, ID
(1-1920) U. S. Army Corps of Engineers (Fort Peck Dam RR), Fort Peck, MT
Disposition: (1940) Scrapped at Cascade, ID
Additional Notes: Converted to coal burner
