Lima Locomotive & Machine Co.

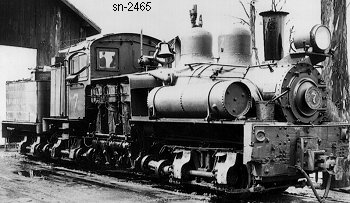

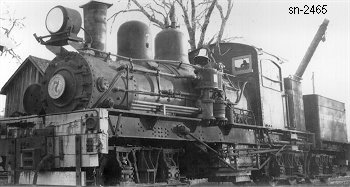

Photo Credit:
Both: by Robert Hanft

Shop Number 2465	-	Built for: Truckee Lbr. Co.
{1,904th Lima Built Shay}

Built: 7-28-1911	Class: C 60-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 11 x 12
Gear Ratio: 2.529	Wheel Dia.: 32"	Gauge: 36"	Boiler: [Style - Dia.] E.W.T. - 44.25"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 25,820 Lbs.	Factor of Adhesion: 4.90	Maximum Safe Speed: 15.1
Fuel Type: Oil	Fuel Capacity: 1,000 Gals.	Water Capacity: 2,000 Gallons	Empty Weight: As built 105,600
Owners: Norman B. Livermore & Co. (D), San Francisco, CA Truckee Lbr. Co., Butte & Plumas RY Co. #4, Oroville, CA (5-1912) Swayne Lbr. Co., #4 (1st), Oroville, CA (c1917-18) West Side Lbr. Co., Hetch Hetchy & Yosemite Valley RR #7, Tuolumne, CA (3-4-1925) Pickering Lbr. Co. #7 (1st), Tuolumne, CA (7-1934) West Side Lbr. Co. #7, Tuolumne, CA (11-17-1965) City of Sonora, Sonora, CA (donated for display) (1-1978) West Side & Cherry Valley RR #7 (Tourist), Tuolumne, CA (1-1986) Roaring Camp & Big Trees Narrow Gauge RR #7 "SONORA", Felton, CA
Disposition: Operational @ Roaring Camp & Big Trees Narrow Gauge RR, Felton, CA
Additional Notes: Operational SLc Survivor List
