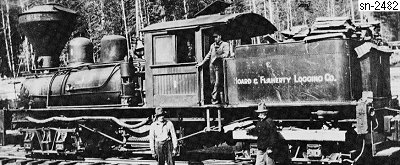

Lima Locomotive & Machine Co.

Photo Credit:
by Clarence Hoard
Shop Number 2482 - Built for: British Canadian Lbr. Co. Ltd.
{1,921st Lima Built Shay}
Built:
11-20-1911
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.06
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,500
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
British Canadian Lbr. Co. Ltd. #1, Vancouver, BC, CAN
(1918) Hoard & Flaherty Log. Co. #1, Bainbridge, BC, CAN
(c1924) Leased to: Bainbridge Lbr. Co., Ltd. #1, Bainbridge, BC, CAN
(5-23-1926) Leased to: Bainbridge Log. Co. Ltd. #1, Bainbridge, BC, CAN
(12-1-1927) Leased to: Alberni Pacific Lbr. Co., Ltd. #1, Franklin River, BC, CAN
Disposition: Scrapped
Additional Notes:
