Lima Locomotive Corporation

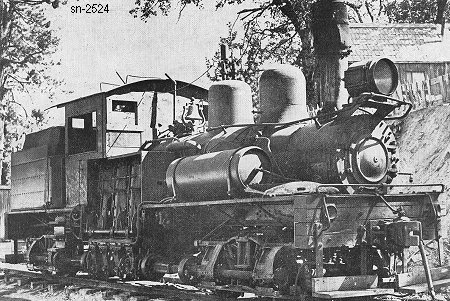

Photo Credit:
by Philip C. Johnson (c1941)
Shop Number 2524 - Built for: Yosemite Lbr. Co.
{1,963rd Lima Built Shay}
Built:
4-9-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,832 Lbs.
Factor of
Adhesion:

4.18
Maximum
Safe Speed:

13.9
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,900
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Yosemite Lbr. Co. #1, Merced Falls, CA
(1935) Yosemite Sugar Pine Lbr. Co. #1, Merced Falls, CA
(1940) Wrecked and rebuilt as #6
Yosemite Sugar Pine Lbr. Co. #6, Merced Falls
(5-8-1942) M. Davidson (D), Stockton, CA
(5-8-1942) For sale as is where is at Merced Falls, CA
Disposition: (4-1947) Scrapped
Additional Notes:
