Lima Locomotive Corporation

Photo Credit:
R. H. Carlson collection

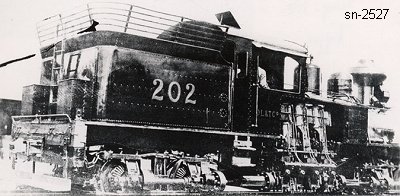

Shop Number 2527 - Built for: Central Coal & Coke Co.
{1,966th Lima Built Shay}
Built:
4-17-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.98
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,200
Owners:
Central Coal & Coke Co., Missouri & Louisiana RR #112, Neame, LA
(9-28-1914) Delta Land & Tbr. Co., Neame, Carson & Southern RR #112, Neame, LA
(by 1-20-1921) Delta Land & Tbr. Co. #202, Conroe, TX
(11-12-1930) Foster Lbr. Co., Fostoria, TX
Disposition: Scrapped
Additional Notes:
