Lima Locomotive Corporation

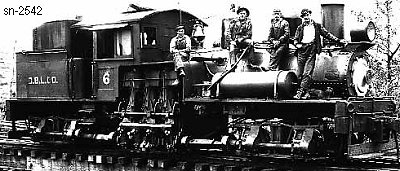

Photo Credit:
Marc Reusser collection
Shop Number 2542 - Built for: Smith Powers Log.Co.
{1,981st Lima Built Shay}
Built:
4-11-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.09
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,000
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Smith-Powers Log. Co. #6, Powers, OR
(12-17-1921) Coos Bay Lbr. Co. #6, Powers, OR
Disposition: Scrapped
Additional Notes:
