Lima Locomotive Corporation

Photo Credit:

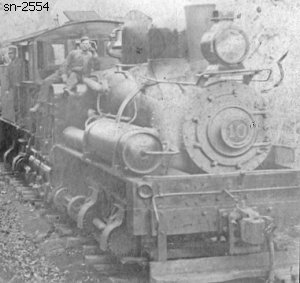

Top: Thomas Lawson Jr. collection (c1930)

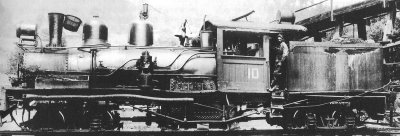

Right: Raybun County Historical Society
Shop Number 2554 - Built for: Byrd Mathews Investment Co.
{1,993rd Lima Built Shay}
Built:
2-17-1913
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.67
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
84,000
Owners:
Byrd Mathews Lbr. Co., (Byrd Mathews Investment Co.) #10, Helen , GA
(3-16-1923) [42"] Morse Brothers Lbr. Co. #10, Helen, GA
Disposition: (1932) Scrapped at Helen, GA
Additional Notes:
