Lima Locomotive Corporation

Photo Credit:
George R. Kadelak collection (BP 4-1912)

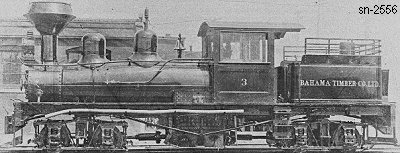

Shop Number 2556 - Built for: Bahama Tbr. Co.
{1,995th Lima Built Shay}
Built:
6-26-1912
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,865 Lbs.
Factor of
Adhesion:

4.59
Maximum
Safe Speed:

10.7
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,050 Gallons
Empty Weight:
As built
47,855
Owners:
Bahama Tbr. Co. #3, Brunswick, GA
Disposition: Scrapped
Additional Notes:
