Lima Locomotive Corporation

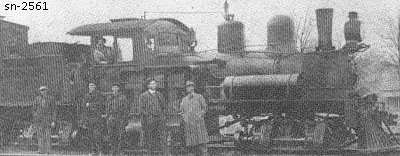

Photo Credit:
Overton County Historical Society collection (1912)
Shop Number 2561 - Built for: Overton County RR Co.
{2,000th Lima Built Shay}
Built:
6-27-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.07
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,600
Owners:
Overton County RR Co., Overton County RR #4, Livingston, TN
(1913) Overton County Bank, Livingston TN
(1913) Leased to: George A. Clark, Livingston, TN
Tennessee, Kentucky & Northern RR, Nashville, TN
Southern Iron & Equip. Co. (D) #1409, Atlanta, GA
(11-12-1919) General Equip. Co. (D), McComb, MS
(11-12-1919) Bolinger-Franklin Lbr. Co. #4 (1st), Zama, MS
Southern Iron & Equip. Co. (D) #1851, Atlanta, GA
(9-1923) Eastman-Gardiner Hardwood Co., Sandersville, MS
(4-18-1929) Stored, not in use Sandersville, MS
Disposition: Scrapped
Additional Notes: Shipped to: Algood, TN
