Lima Locomotive Corporation

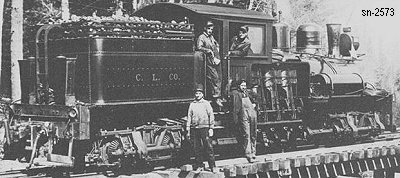

Photo Credit:
David Ritchie collection
Shop Number 2573 - Built for: Crookston Lbr. Co.
{2,012th Lima Built Shay}
Built:
8-9-1912
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.05
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,300
Owners:
Crookston Lbr. Co. #4 (1st), Bemidji, MN, For:
Wilton & Northern RR #4, Fowlds, MN
(c11-1913) Crookston Lbr. Co. #4 (1st), Bemidji, MN
Shevlin-Clarke Co., ltd., Flanders, Ontario, CAN
(7-27-1921) For sale
New Ladysmith Lbr. Co., Ltd., Nanaimo, BC, CAN
(by 6-8-1928) Cathels & Sorensen #4, Port Renfrew, BC
(1934) Renfrew Log. Co. #1, Port Renfrew, BC
(10-1-1936) Hemmingsen-Cameron Co., Ltd. #4, Port Renfrew, BC
Disposition: (10-1946) Scrapped
Additional Notes:
